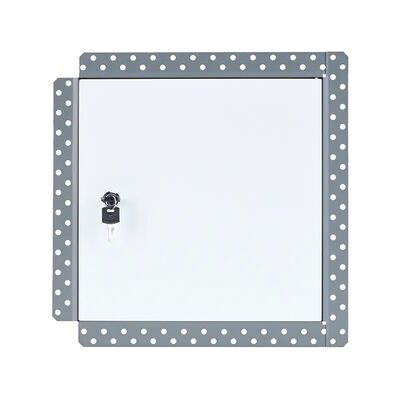

Access panel for wall or ceiling application
1. 1 mm galvanized steel frame and lid.
2. Set a beaded frame and heavy backside.
3. White powder coating finish or special colors available; a beaded and door can be different colors.
4. High durability and corrosion protection.
5. The door can be easily detached with a spring hinge.
6. Key lock system: all locks can be operated with one key.
7. Standard sizes: 20×20, 30×30, 40×40, 45×45, 50×50, 60×60; customized sizes are available.
8. Packaging: Each piece is placed in a poly bag with shrink wrap, then packed in a carton.
Advantage:
Multiple lock options available:
Slotted lock operated by screwdriver or coin.
Square lock operated by L-key.
Touch lock, push to open.
Markets: Australia and New Zealand markets.
Regular size
| Item | Size(mm) | Opening size W1xL1(mm) | Overall size W2xL2(mm) |
| HFSS-AP257SB | 200x200 | 200x200 | 264x264 |
| 300x300 | 300x300 | 364x364 | |
| 400x400 | 400x400 | 464x464 | |
| 500x500 | 500x500 | 564x564 | |
| 600x600 | 600x600 | 664x664 |
