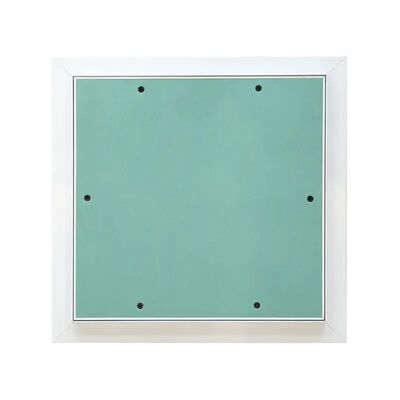

HFSA-AP330 Ceiling Access Panel
HFSA-AP330 PUSH OPEN CEILING ACCESS PANEL
1. Available in ceiling or drywall maintenance panel
2. Strong aluminum profile and strong hardware
3. White powder coated finish
4. With sealing strips between inner and outer frames
5. Concealed snap lock, push open
6. 12mm moisture-resistant gypsum board inlay optional: 9mm/12.5mm/15mm/25mm moisture-resistant gypsum board inlay
7. Removable door panel with safety
8. Quick installation without difficulty
9. Standard size: 20x20cm, 30x30cm, 40x40cm, 45x45cm, 50x50cm, 60x60cm, 60x120cm
10. Customized sizes and colors are available
11. Package: 1pc/bubble bag, then put into carton, pallet is available.
Advantage:
Concealed snap lock, push open.
Star products in the UAE&KSA market
Frameless access panel after installation
Regular size
| Item | Neck Size(mm) | Opening Size W1×L1(mm) | Overall Size W2×L2(mm) |
| HFSA-AP330 | 308x308 | 300x300 | 358x358 |
| 408x408 | 400x400 | 458x458 | |
| 458x458 | 450x450 | 508x508 | |
| 508x508 | 500x500 | 558x558 | |
| 608x608 | 600x600 | 658x658 |
