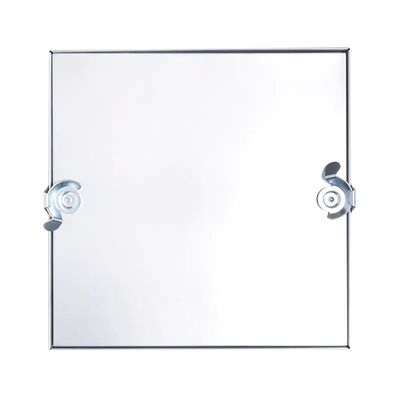

HFSS-DP005 Square Pipeline Access Panel
Detail Information
Model Number
HFSS-DP005
Product Description
Description
1. Access Doors are designed to provide quick and easy access to duct maintenance, smoke, and volume control dampers.
2. 0.5 mm galvanized steel and 1.5mm strong accessories cam latches.
3. Easy to be installation and maintenance.
4. Four around insulation with 3mm EVA seal.
5. Inside with the heat proof material, custom design also available.
6. Size: custom size is available.
7. Package: each product with one bag, then into carton, pallet available.
Regular size
| Item | Size(mm) | Neck Size N1 x N1(mm) |
Overall Size W2 x L2(mm) |
| HFSS-DP005 | 150x150 | 115x115 | 150x150 |
| 200x125 | 165x90 | 200x125 | |
| 200x200 | 165x165 | 200x200 | |
| 250x250 | 215x215 | 250x250 | |
| 300x150 | 265x115 | 300x150 | |
| 300x200 | 265x165 | 300x200 | |
| 300x300 | 265x265 | 300x300 | |
| 350x350 | 315x315 | 350x350 | |
| 400x200 | 365x165 | 400x200 | |
| 400x300 | 365x265 | 400x300 | |
| 400x400 | 365x365 | 400x400 | |
| 450x300 | 415x265 | 450x300 | |
| 450x450 | 415x415 | 450x450 | |
| 500x500 | 465x465 | 500x500 | |
| 600x300 | 565x265 | 600x300 | |
| 600x600 | 565x565 | 600x600 |
