1. Frame thickness: 1.0mm; blade thickness: 0.5mm.
2. Anodized or powder-coated in white; other custom colors available upon request.
3. Suitable for supply and exhaust of cooled and heated air; compatible with central air conditioning and ventilation systems.
4. Bolt-type fastening.
5. White powder-coated finish.
6. Fixed blade design.
7. Quick and easy installation.
8. Custom sizes available.
9. Packaging: Each piece is packed in a plastic bag, then placed in a carton; pallet packaging is available.
10. Standard sizes: 200×200mm, 300×300mm, 400×400mm, 500×500mm, 600×600mm.
Advantage:
A black filter can be installed on the backside.
Easy to install.
Strong aluminum frame.
Regular size
| Item | Neck Size (mm)A |
Face size (mm) D |
Blade space (mm)B |
Height (mm)H |

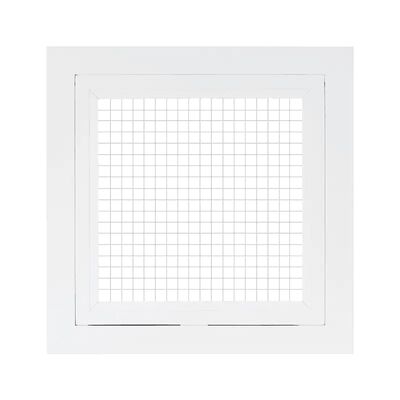

| HFSA-EG | 190x190 | 247x247 | 12.7 | 45 |
| 290x290 | 347x347 | 12.7 | 45 | |
| 390x390 | 447x447 | 12.7 | 45 | |
| 490x490 | 547x547 | 12.7 | 45 | |
| 590x590 | 647x647 | 12.7 | 45 |
![]()
![]()
