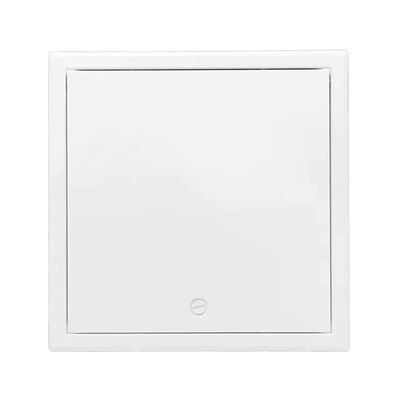

HFSS-AP250FF Metal Access Door
Access panel for wall or ceiling application.
1. 1mm galvanized steel frame and lid.
2. Flange frame finish.
3. White powder-coated finishes or special colors are available.
4. High durability and corrosion protection.
5. The stainless steel riveted hinges of the door are not removable.
6. Four bendable ears for fixing screws.
7. Lock: slotted lock/squarlock/touch lock.
8. Standard size: 20x20/30x30/40x40/45x45/50x50/60x60.
9. 20x20/30x30/40x40 with one piece punched frame 50x50/60x60 with welded frame.
10. Customized size available.
11. Packaging: Each piece e put into a poly bag with shrink wrap, then put into a carton.
Metal access doors are made of strong metal, aluminum, or galvanized steel. As a professional metal access door manufacturer, we are able to offer competitive prices and quality to our customers.
Advantage:
1. Different locks available.
2. Slotted locks are operated with a screwdriver or coin.
3. The lock is operated by the L key.
4. The lock was pushed open.
Regular size
| Item | Neck Size(mm) | Opening Size W1×L1(mm) | Overall Size W2×L2(mm) |
| HFSS-AP250FF | 200x200 | 195x195 | 258x258 |
| 300x300 | 295x295 | 358x358 | |
| 400x400 | 395x395 | 458x458 | |
| 500x500 | 495x495 | 558x558 | |
| 600x600 | 595x595 | 658x658 |
